ChickenMaster Pro

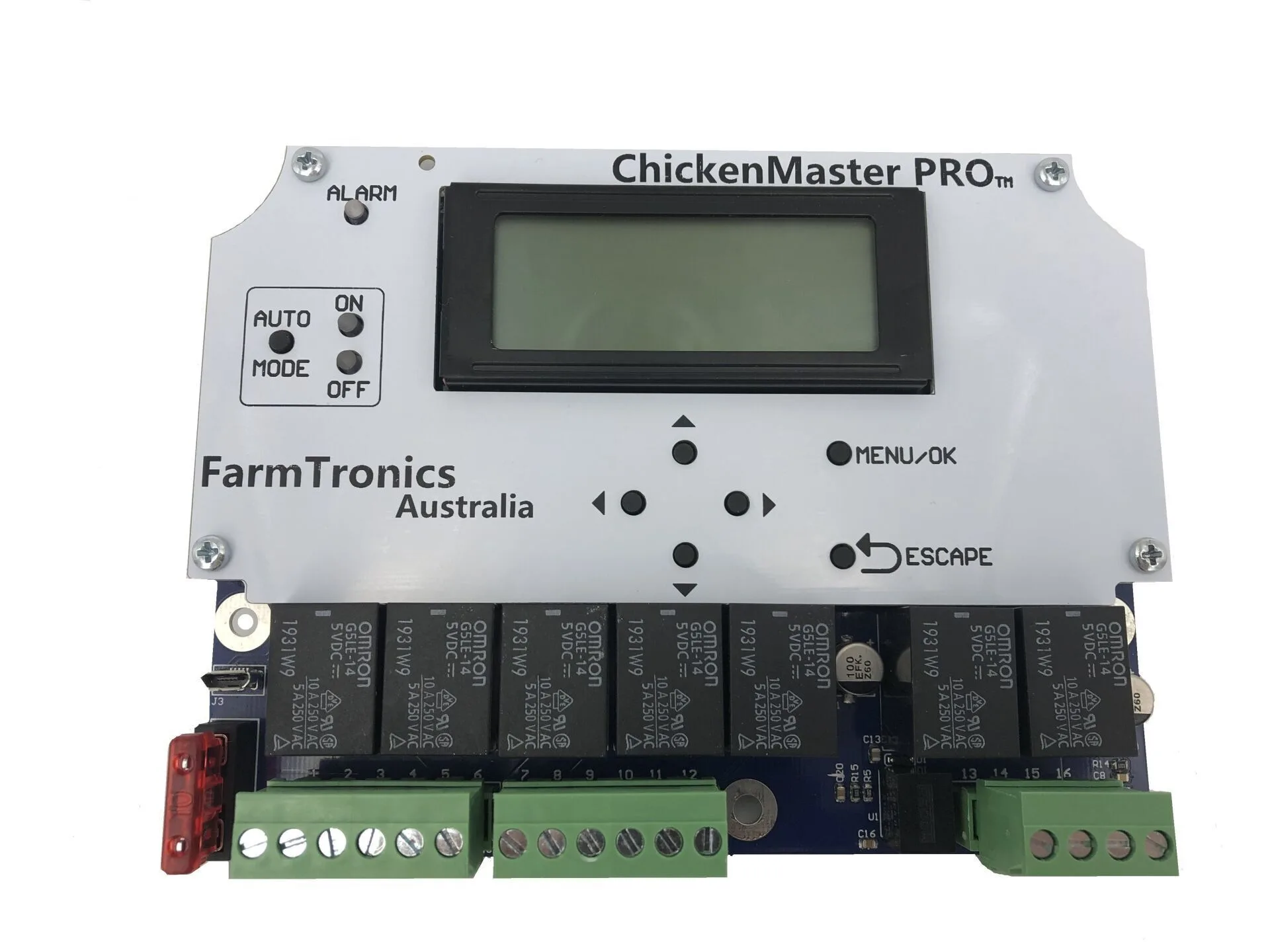

ChickenMaster PRO Switchboard PWM 30A (V02.03A) - by FarmTronics Australia - is a purpose built Automation Switchboard for use in Mobile or Fixed Egg farming Caravans, Coops or Sheds. Fully automate functions such as Open/Closing of Nest Box Gates, Open/Closing of External Doors, turning On/Off the Internal Lighting and also incorporates a Courtesy Light Timer & Push Button for the Egg collection area.
Specifications
- Model Number
- CMPRO-SWB-PWM-30A
- Enclosure Dimensions (mm)
- 280H x 190W x 100D
- Working Temperature Range
- -10.0C to +50.0C
- Battery Type Suitability
- Lead Acid (Flooded, GEL & AGM) & Lithium (Li(LiCoMn)O2 & LiFePO4)
- Solar Panel Input Specification
- 12 Volt DC Maximum 390 Watts
- Solar Charge Controller TYPE
- PWM - Pulse Width Modulated 3 Stage Charging Function
- Internal Lighting Output
- Positive Supply 12 Volt DC Relay Output
- Nest Box Gates & External Doors Output
- Bi-Directional 12 Volt DC Relay Output
Features
- Clock/timer settings based on geographic location
- IP67 Weatherproof rating

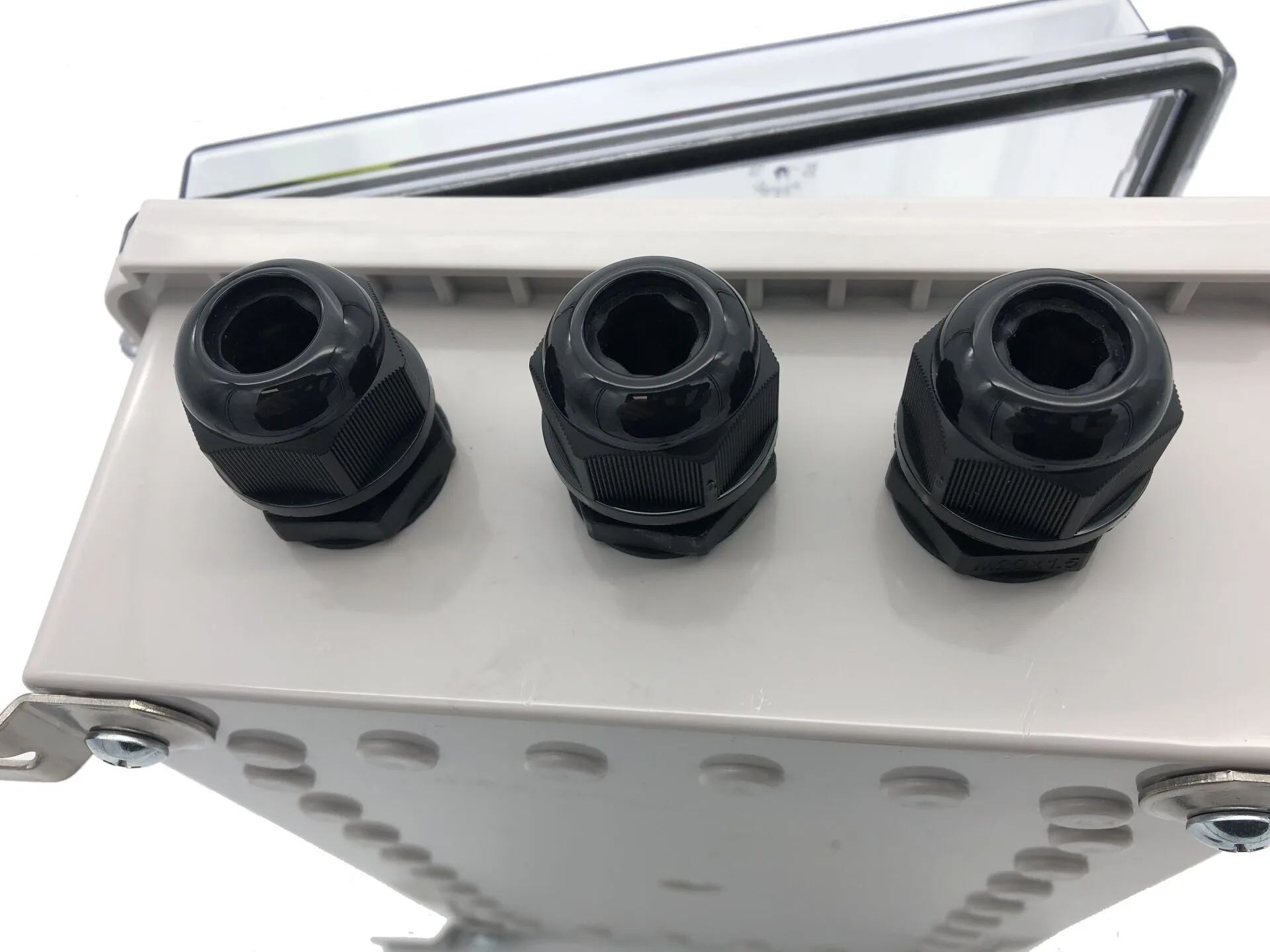

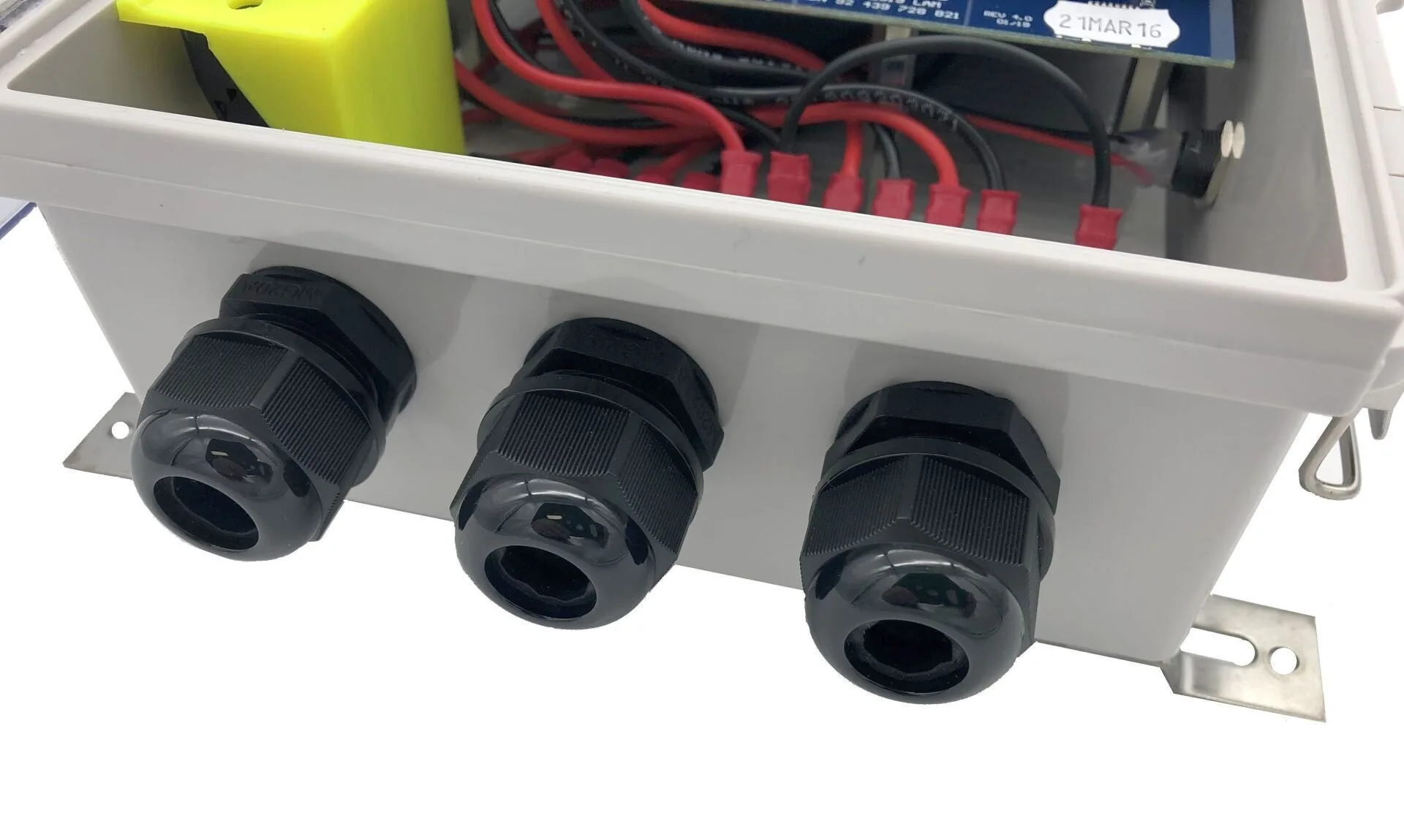

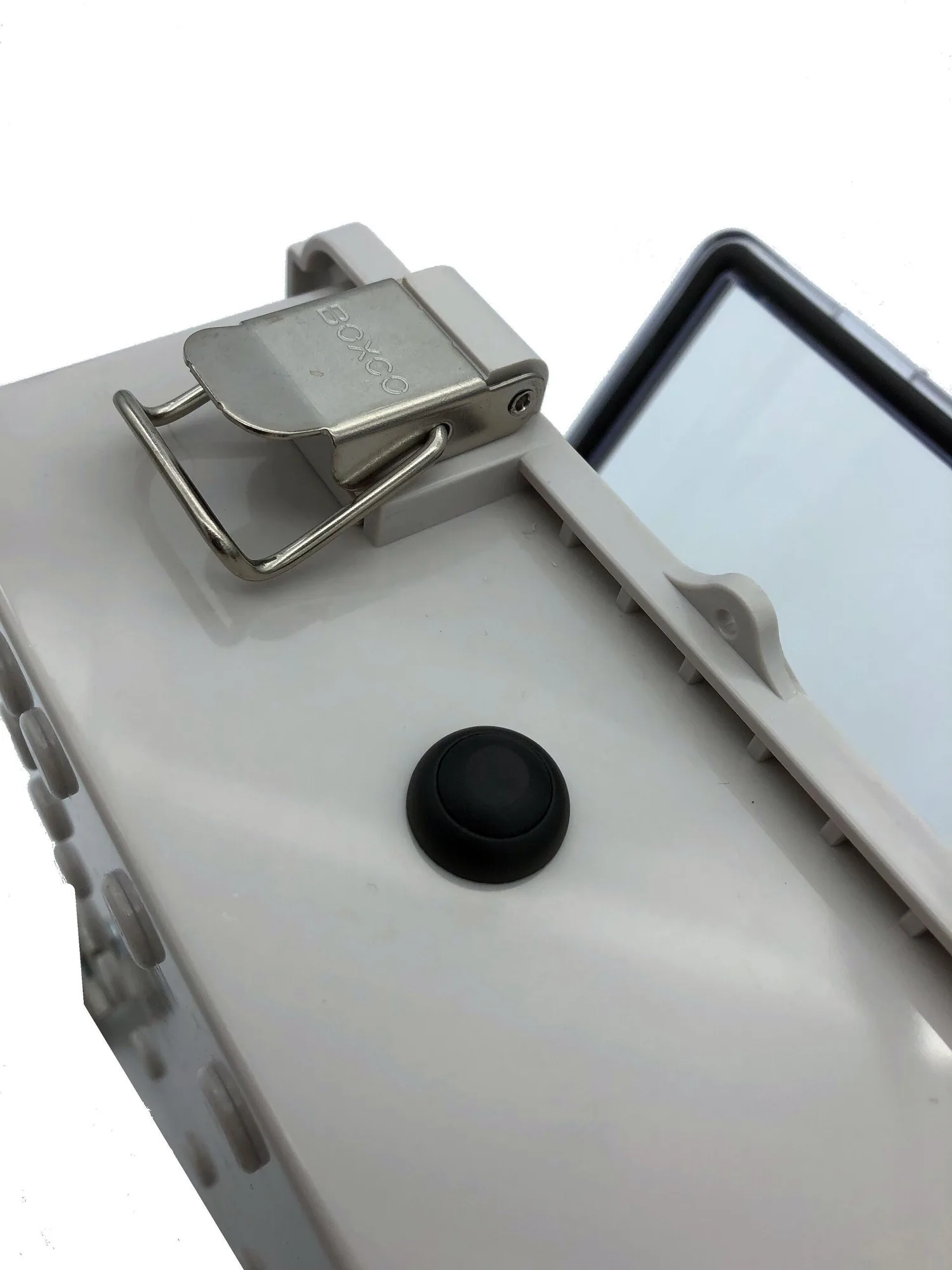

- Made from high impact UV Stabilised Polycarbonate and 304 Stainless steel mounting clips and lid clasps

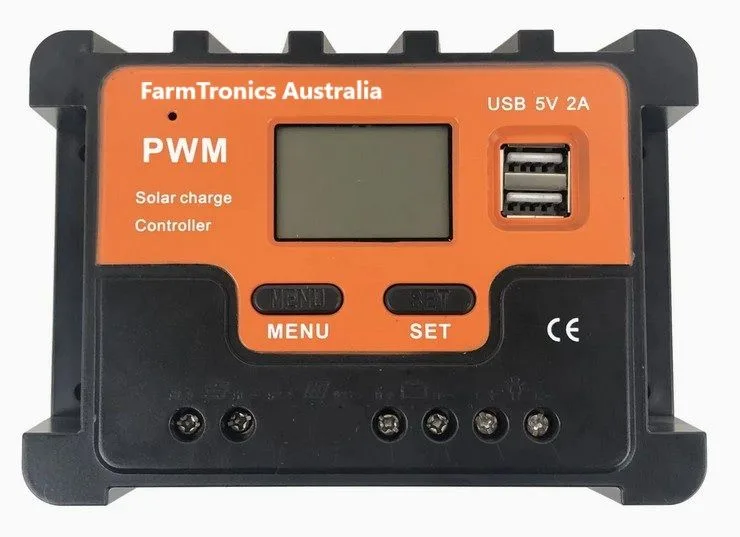

- Includes a 30 Amp PWM, 3 stage full function Solar Charge Controller with LCD display
- Settings can be fine-tuned offering flexibility for different farming activities
- Non Volatile Flash Memory backup
- 96 Hour Built in Super Capacitor Clock backup
Available Add-Ons
- Automatic Door CAUTION Stickers
6-pack of weather Proof "CAUTION" stickers for Automatic doors (95mm x 95mm)
