60-70 birds

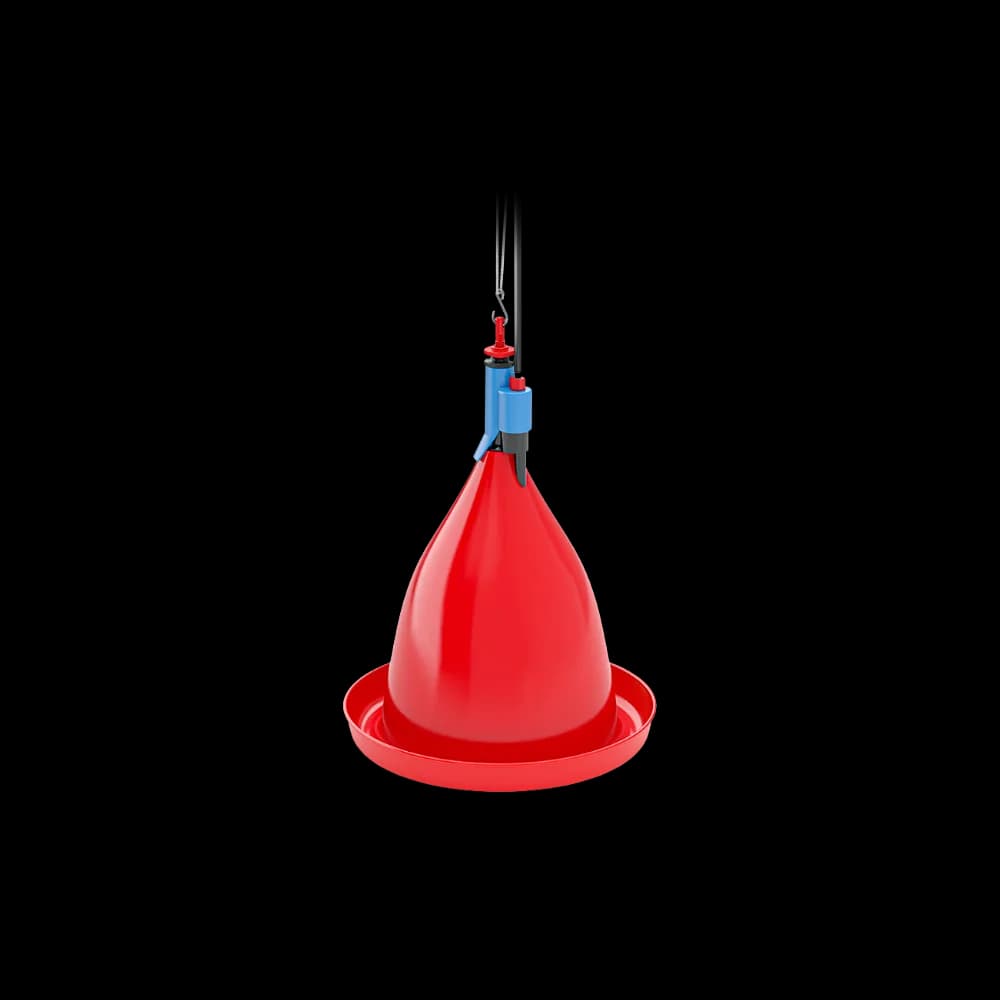

Jumbo-B Bell Drinker

Jumbo-B bell drinker is a drinker that can be used either on the floor or hanged. It is supplied with a specific ballasted bell to be placed under the red bell and filled with water or, for more stability, with sand (used as ballast), in order to avoid drinker’s shaking and consequent water leaking in the poultry house. The fully ABS-plastic made valve reduces internal wear of threads, providing total security, big reliability and high performances of the drinkers, minimizing the possibilities of water flooding.

Specifications

Diameter
415mm
Height
630mm
Gutter Depth
45mm
Gutter Width
50mm
Weight
1.86kg
Capacity
60-70 Broilers/Breeders

Features

  • The fully ABS-plastic made valve reduces internal wear of threads
  • Minimises the possibilities of water flooding
  • Can be used from day one
  • Working pressure: min 0.2 bar – max 0.5 bar
  • For higher pressures, either use a reducer or connect to a water tank that should be placed at least 4 m above ground level.
  • For optimum working conditions, it is suitable to keep the water level beetween 10 to 20 mm
